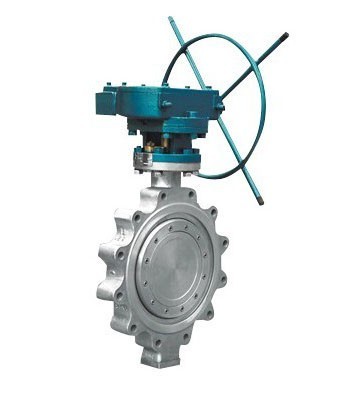

Hastelloy lug type butterfly valve
Hastelloy lug type butterfly valve
Author：admin Source： Date：2014-8-13 16:47:37 Popularity：
Label：
Technical Specification
Design Standard: GB/T12238, GB/T8527, MSS SP-68, API 609
Face to Face: GB/T12221, API 6D, ASME B 16.10--
Flanged Ends: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test & Inspection: JB/T9092, GB/T13927, API 598----
Material Range
Hastelloy B: A494 N12MV, B335 N10001
Hastelloy B-2: A494 N7M, B335 N10665, B335 N10665
Hastelloy C276: A494 CW12MW/CW6M, B564 N10276, B574 N10276
Hastelloy C-4: A494 CW2M, B574 N06455
Hastelloy G: B564 N06007, B581 N06007
Hastelloy G30: B462 N06030, B581 N06030
Pressure Rating
1.0-4.0Mpa 150-300Lb
Nominal Size
DN50-DN1200 2”-48”
Driving Manner
Pneumatic operated, worm wheel operated, eletric operated,
fluid driving
Serve Application
Strong corrosive medium
